监控继电器,监控与保护继电器,3相电压继电器,DPA51,DPA71系列
|
产品型式
|
DPA01
PPA01 |
DPA51
DPA71 |

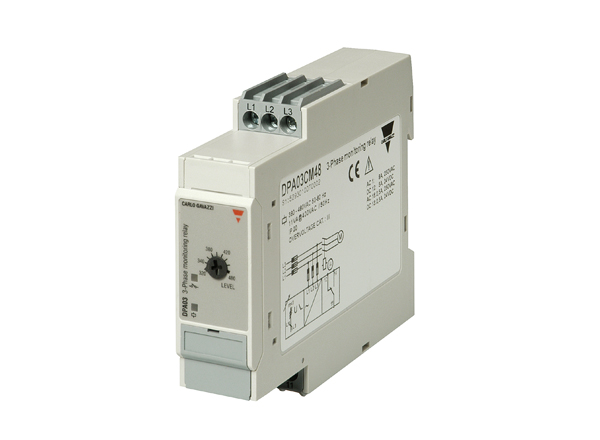

DPA03
PPA03 |
DPA53
|
|
|
|
|
|
|
外形尺寸(mm)HxWxD DIN 导轨安装 |
80x22.5x99.5[D] |
81x17.5x67.2[Mini-D] 81x35.5x67.2[Mini-D] |
80x22.5x99.5[D] |
81x17.5x67.2 |
| 插入式安装 | 80x36x94[P] | 80x36x94[P] | ? | |
| 功能 |
相序,缺相监控继电器. 3-相 AC (自身电源). 再生电压监控. |
相序,缺相监控继电器. 3-相 AC (自身电源). 再生电压监控. |
欠电压, 相序,缺相监控继电器.3-相 (自身电源),AC TRMS. |
欠电压, 相序 缺相监控继电器. 3-相(自身电源) AC TRMS. |
| 输入规格 | ? | |||
| 测量范围 |
208-240VAC[M23] 208-415VAC[P][M44] 208-480VAC[D][M44] 380-415VAC[P][M48] 380-480VAC[D][M48] 380-600VAC[M60] 380-690VAC[M69] |
208-240VAC[M23] 208-480VAC[M44] 380-480VAC[M48] |
208-240VAC[M23] 380-415VAC[P][M48] 380-480VAC[D][M48] 600-690VAC[M69] |
208-240VAC[M23] 380-480VAC[M48] |
| 输出规格 | ? | |||
|
1xSPDT继电器[C] 1xDPDT继电器[D] |
1xSPDT继电器[C] 1xDPDT继电器[D] |
1xSPDT继电器 | 1xSPDT继电器 | |
| 最大负载能力AC1 | 8A/250VAC | 5A/250VAC | 8A/250VAC | 5A/250VAC |
| 最大负载能力DC12 | 5A/24VDC | 5A/24VDC | 5A/24VDC | 5A/24VDC |
| 电气寿命 | >1x105次 | >1x105次 | >1x105次 | >1x105次 |
| 通用规格 | ||||
| 电源 |
208-240VAC[M23] 208-415VAC[P][M44] 208-480VAC[D][M44] 380-415VAC[P][M48] 380-480VAC[D][M48] 380-600VAC[M60] 380-690VAC[M69] |
208-240VAC[M23] 208-480VAC[M44] 380-480VAC[M48] |
208-240VAC[M23] 380-415VAC[P][M48] 380-480VAC[D][M48] 600-690VAC[M69] |
208-240VAC[M23] 380-480VAC[M48] |
| 认证／标准 | CE-UL-CSA | CE-UL-CSA | CE-UL-CSA | CE-UL-CSA |
| 选项 | ||||
| DPA01DM23 | DPA51CM44 | DPA03CM23 | DPA53CM23 | |
| PPA01DM23 | DPA71DM23 | PPA03CM23 | DPA53CM48 | |
| DPA01CM44 | DPA71DM48 | DPA03CM48 | ||
| PPA01CM44 | PPA03CM48 | |||
| DPA01DM48 | DPA03CM69 | |||
| PPA01DM48 | ||||
| DPA01CM60 | ||||
| DPA01CM69 |
